CBP operation mode - fully automatic mode, on the principle of "single button".

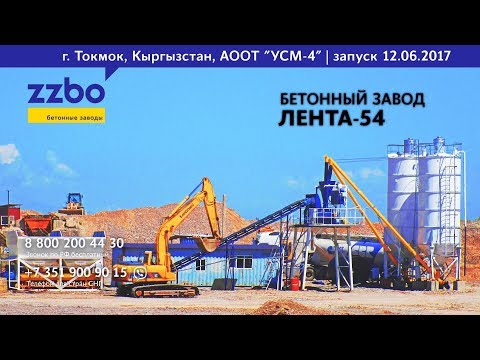

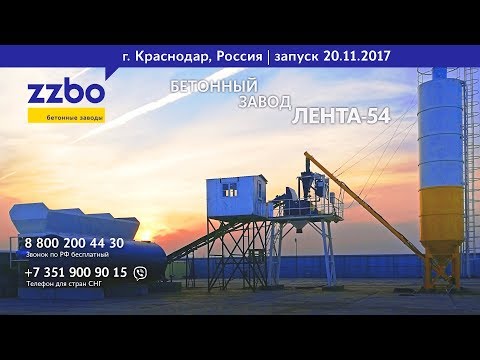

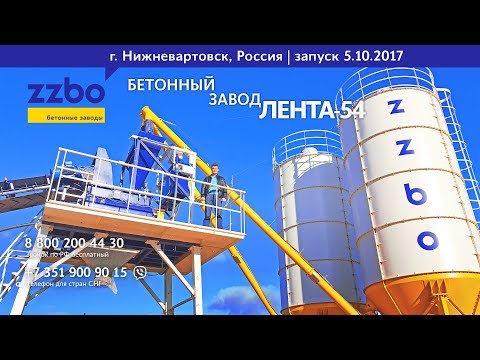

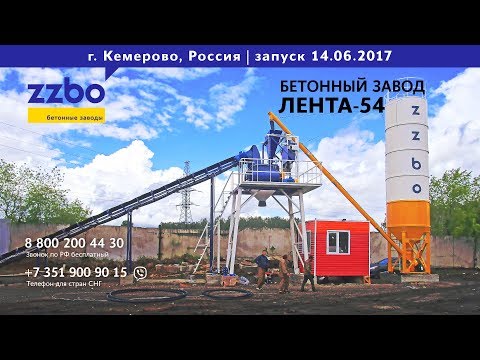

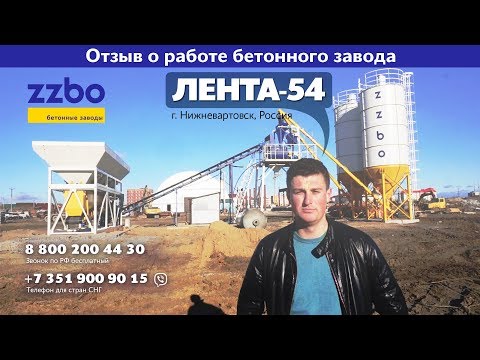

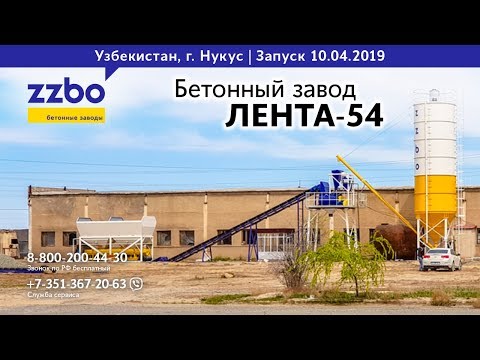

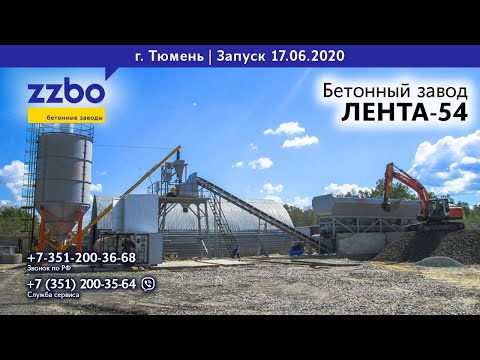

BP-2G-1200 Twin-shaft concrete mixer is installed on the elevated structure with the discharge height - 4 m. LENTA-54 concrete mixing plant is equipped with a chevron belt conveyor for lifting and loading of the aggregates into the mixer.

---

ZZBO is the official dealer of SICOMA concrete mixers in Russia and the CIS!
It is possible to supply a concrete plant with a concrete mixer from the manufacturer SICOMA.

---

For storage and precise batching of the inert materials dosing complex DKM-40. It is possible to supply bunkers of increased volume (up to 72 cubic meters). Inert are loaded and stored in bunkers, the number of bunkers 2 each 20 cubic meters. meters, the total volume of bunkers is 40 cubic meters. meters. Under the bunkers, a conveyor conveyor is installed under which accurate dosing of the components occurs, the components are supplied from the bunkers by opening the gate shutters, the damper is controlled by the pneumatic system.

---

Upon achievement of the required batch of the inert materials, the conveyor is turned on and they are discharged into the belt conveyor's receiving hopper and after that into the mixer.

---

Protect inert materials from precipitation using Shelter of the strip conveyor!

---

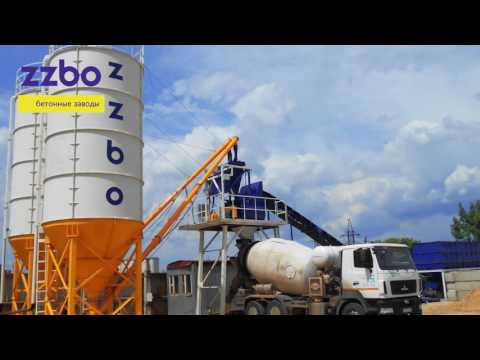

The cement is stored in a special warehouse - cement silo (not included in the basic package). Silos for cement must be selected the rate of two daily stock performance. For feeding cement from a cement silo dispenser must acquire the correct length screw.

---

Cement silos, silo piping and augers are always in stock in Zlatoust!

---

Using cement is fed into the screw BD-45 block of dispenserswhich consists of a 500 kg cement dispenser, 250 liters and a 32 -liter -liter chemical additive dispenser. Each dispenser is located on three high -precision tensodes and a hard frame, which increases the accuracy of dosing. The cement dispenser is equipped with the MVE 300/3 vibrator to encourage cement mating when he is sticking.

---

All components of the mixture are mixed, after obtaining the necessary homogeneity of the mixture, the pneumatic valve of the concrete mixer is opened and the mixture is supplied to the concrete mixer truck or receiving hopper.

Then the cycle is repeated.

---

One cycle lasts for about 50 seconds during which 0.8 cu m of ready-to-use concrete is produced. LENTA-54 capacity is 35-54 cu m per hour of operation.

Technical Features
