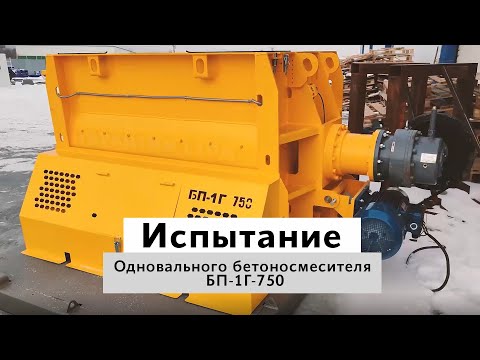

Single-shaft concrete mixer BP-1G-750
8 981 280 ₸




Enquire conditions
and delivery time

We'll call you back within 15 minutes

Specify your requirements

Send prices and terms of delivery
Single-shaft concrete mixer BP-1G-750 |
Привод: планетарный мотор-редуктор "LIKEDRIVE" 18,5 кВт |
Пневмозатвор - двойной, комплект для подключения пневмооборудования |
Armor replaceable scaly type. Thickness 16mm |
Спицы усиленные (стальное литье) крепление типа "кулак" - 8 штук |
Replaceable blades - 8 pieces. Material: Cast iron ChKh16N2T (chromium high-alloy wear-resistant) |
Water equilibrium distribution device |
Electricity to connect the remote control |
A set of spare parts and accessories (three armors, a blade, a spoke), a passport for a concrete mixer |
Control panel |
skip hoists |
Concrete mixer nozzle ZG 1/4 P159 (stainless steel) |
Автоматическая централизованная система смазки "BEKA" (Германия) |
Компрессор "ABAC" |
BD-30 Block of Dispensers |
DVPL-2 Water Dispenser |
Doziruûŝij Complex DK |
Overpass under concrete mixer |
Support for mixer |
Силос цемента СЦ на выбор |
Растариватель биг-бегов на выбор |
Шнек на выбор |
single-shaft mixer BP-1G-750 объемом 750 литров, принудительного типа, с одним горизонтальным перемешивающим валом.
Предназначен для приготовления высокооднородных жестких и пластичных бетонных смесей, а также строительных растворов, на тяжелых и легких заполнителях с крупностью до 70 мм.
В корпусе бетоносмесителя расположен вал с установленными на нем 2 группами спиц с лопастями, обращенных навстречу друг к другу, вращение которого осуществляется планетарным мотор-редуктором “LIKEDRIVE” мощностью 18,5 кВт.
Designed for the preparation of highly homogeneous rigid and plastic concrete mixtures двойного пневмозатвора.
Чистку внутренней полости корпуса и лопастей необходимо производить водой с щебнем.
Designed for the preparation of highly homogeneous rigid and plastic concrete mixtures чугунной броней чешуйчатого типа толщиной 16 мм.
The paddles are made of wear-resistant cast iron with 2 years lifetime. Spokes reinforced, cast-steel, fixed to the shaft by knuckle mounting.
Can be supplied in a protective coating of zinc. The coating is applied by cold galvanizing.
When producing a semi-dry mix for a vibrating press, we recommend installing a ZG 1/4 nozzle for spraying water
- Capacity up to 30 cubic meters. m h
- Планетарный мотор-редуктор “LIKEDRIVE” 18,5 кВт
- Один смесительный вал, 8 лопастей. Крепление спиц к валу типа “кулак”
- 1 year warranty
Technical Features
- Loading volume, l 750
- Ready-mix concrete volume, l 500
- Mortar volume, l 600
- Capacity, cu m 20...30
- Mixing time, seconds 30...60
- Aggregate size, mm max 70
- Shaft rotation speed, rot/min 32
- Supply voltage, V/Hz 380/50
- Total installed power, kW 18,5
- Затвор секторный, двойной пневмопривод
- Weight, kg 2550
- Height, mm 1428
- Width, mm 1596
- Length, mm 2920
